Type
DDS2203-20 Register
Display
5+1
Accuracy
Class 1
Rated Voltage (Un)
220V Or 240V Or Other
Base Current (Ib)
5A, 10A,15A or other
Max Current (Imax)
20A, 40A or other
Starting Current (mA)
0.4% Ib
Power Consumption of Current
≤1W 10VA Per Phase
IP Class
IP51
AC Voltage Withstand
2KV for 1 Minute
Impulse Output Rate (Imp/kWh)
1600, 800 Or Other
Operating Temperature
-20°C To +55°C
Storing Temperature
-40°C To +70°C
Operating Humidity
≤75%
Storing Humidity
≤95%
Communication
N/A
LCD Display Backlight
Battery

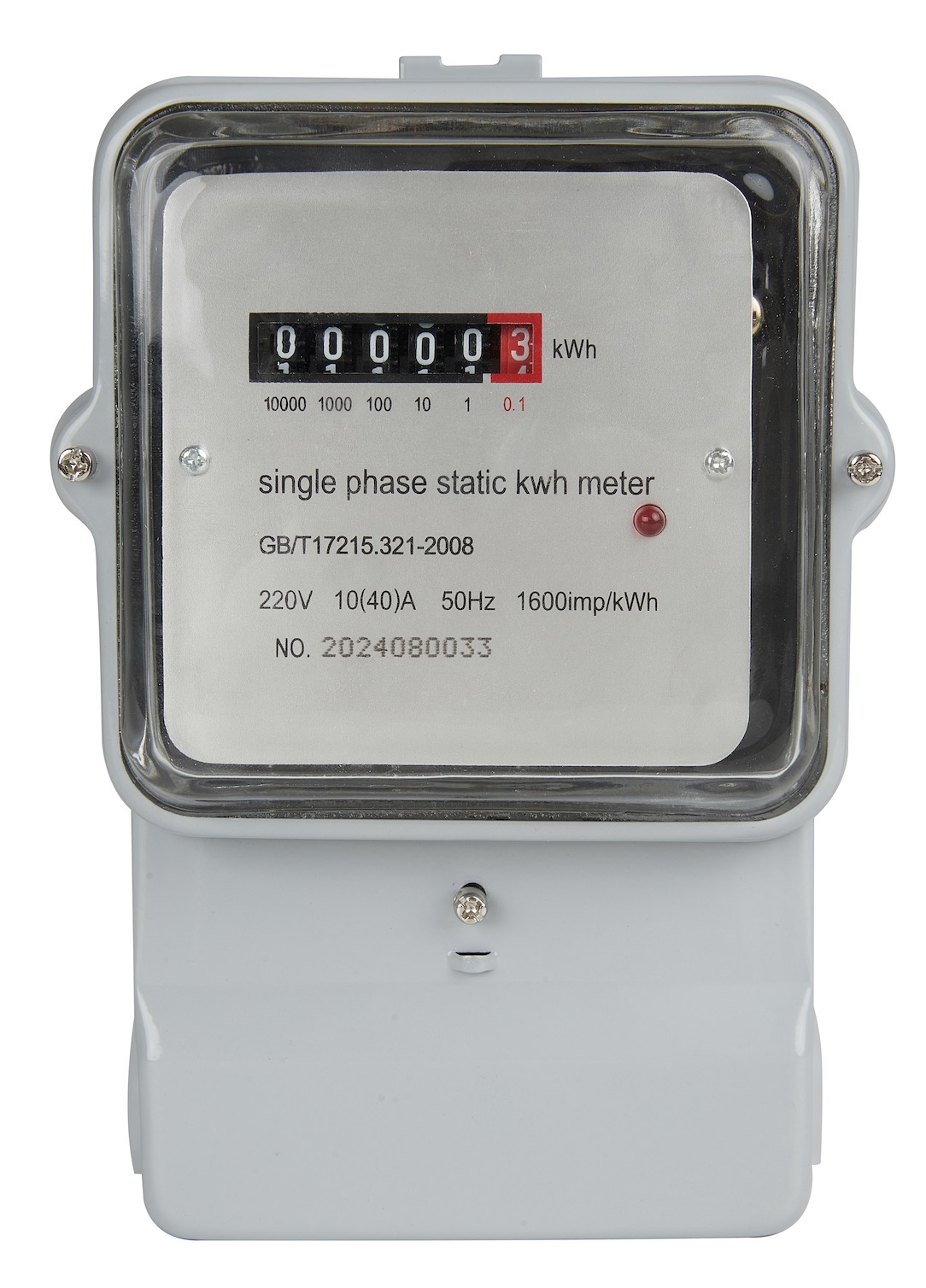

APPEARANCE

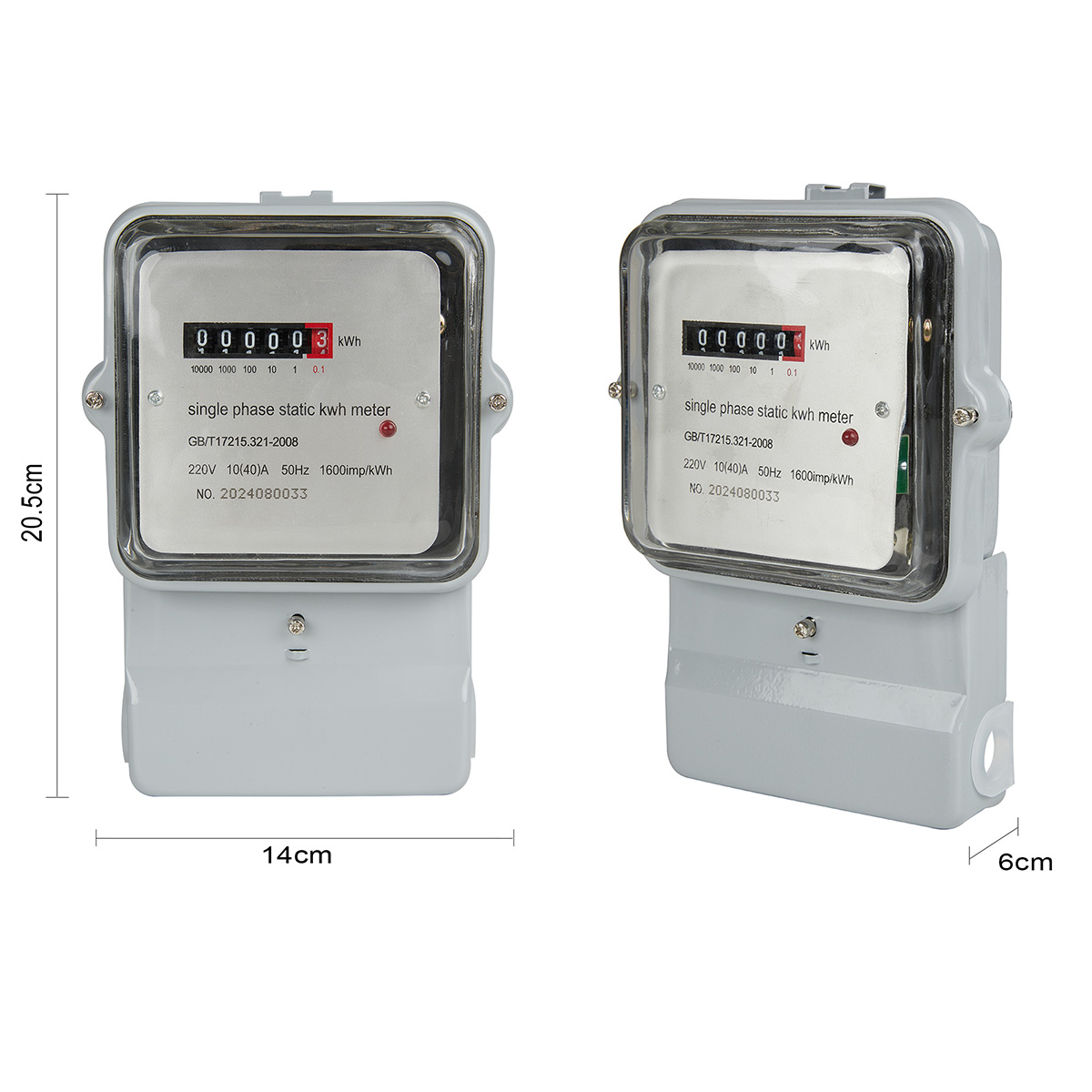

DIMENSIONS
