General
Voltage and current display relay is a microprocessor-based voltage monitoring device for single-phase AC networks to
protect electrical equipment from surge voltage. The device analyzes the main voltage and displays its current value on a digital
indicator. Load is switched by electromagnetic relay. The user can set the current voltage value and delay time through the button. The value is stored in non-volatile memory. Aluminum wires and copper wires can be used for connection.
Application
Voltage and current display relay used in administrative, industrial and residential buildings and has the function of protecting
single-phase lines:
Undervoltage protection;
Overvoltage protection;
Working under voltmeter mode;
Overcurrent proteciton.

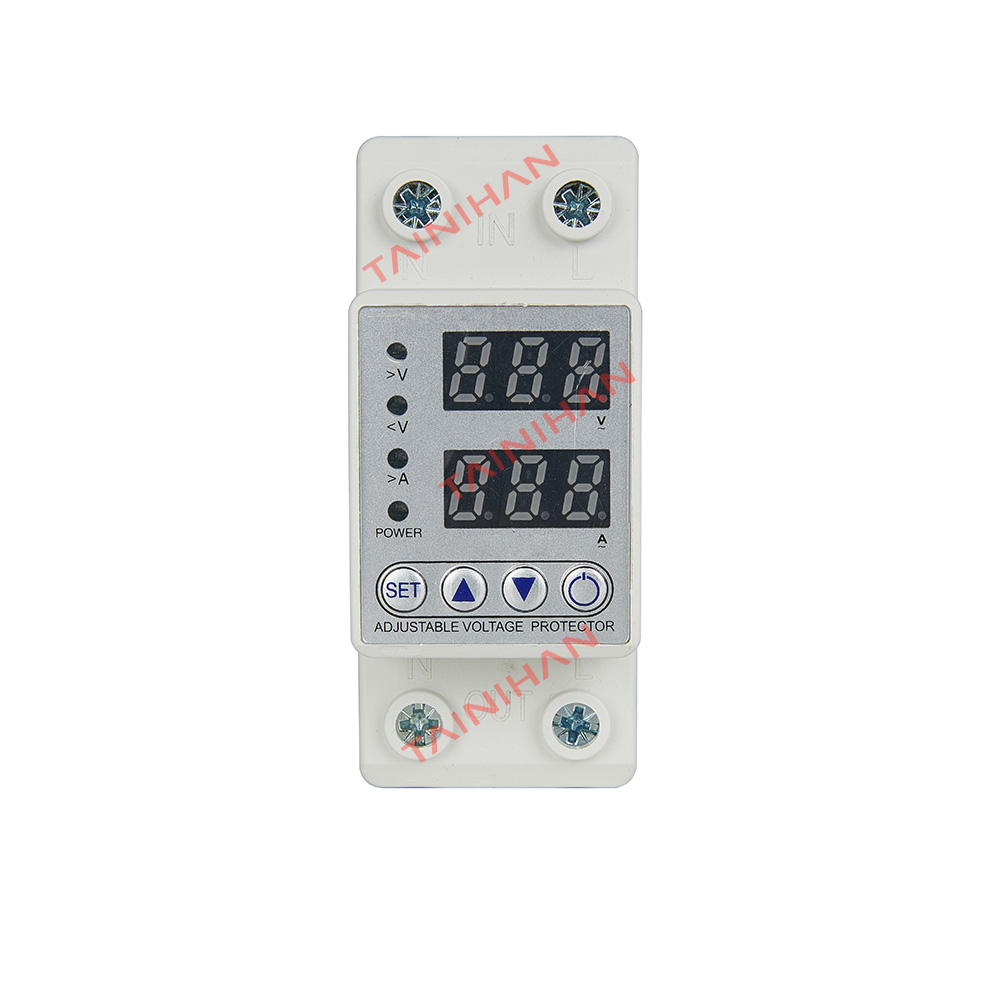

APPEARANCE
![]()
![]()
![]()

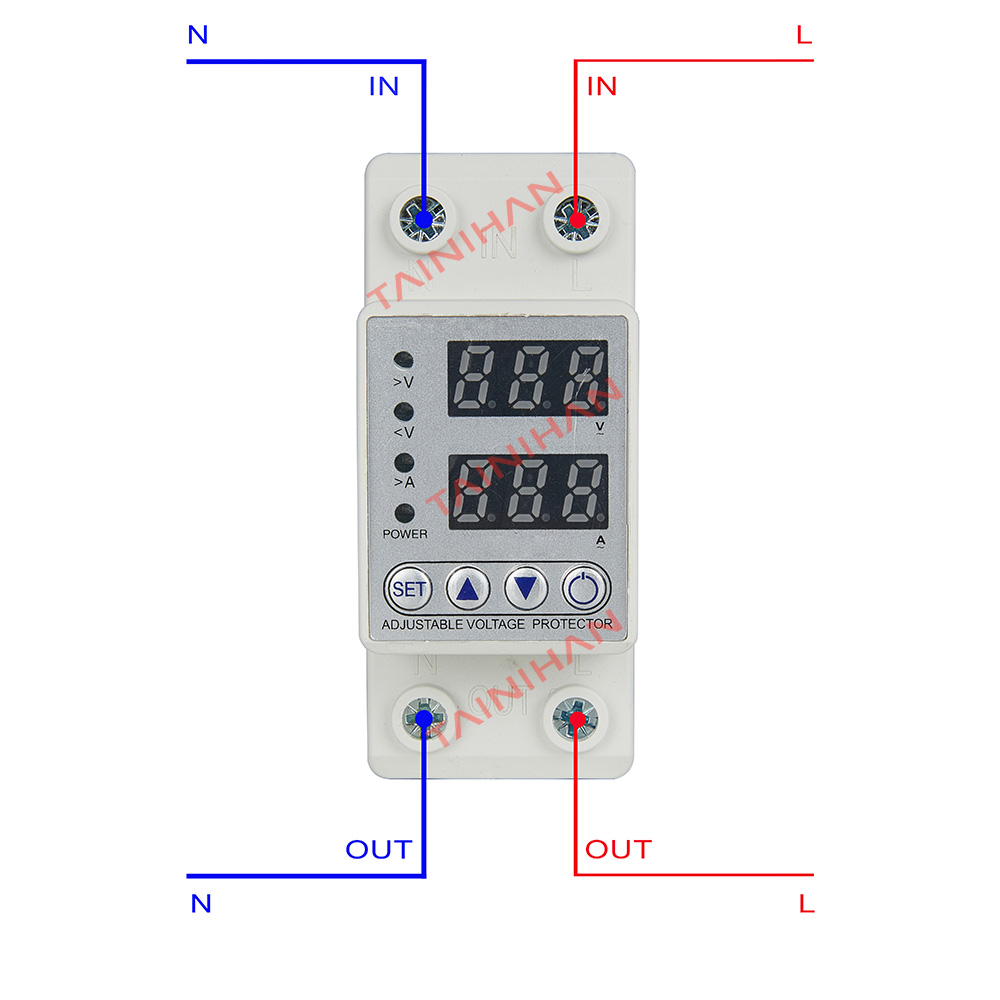

DIAGRAM

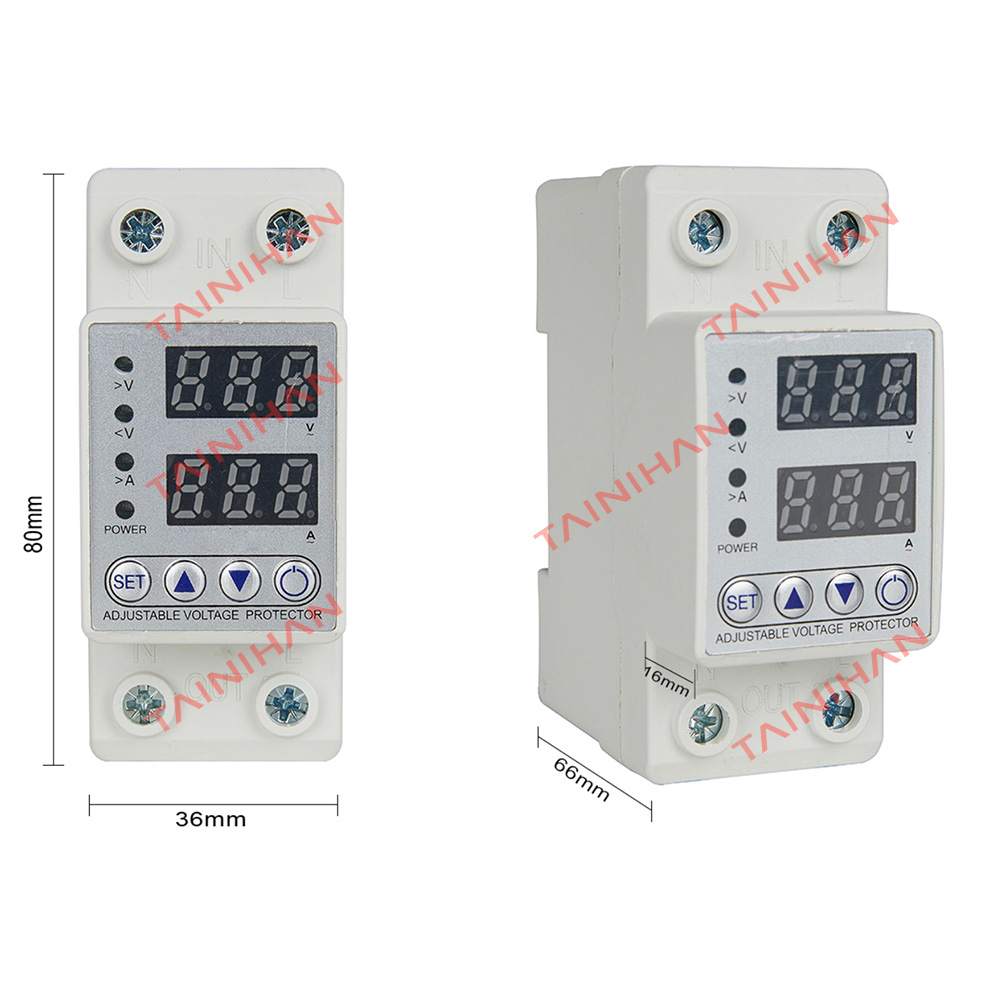

DIMENSIONS
