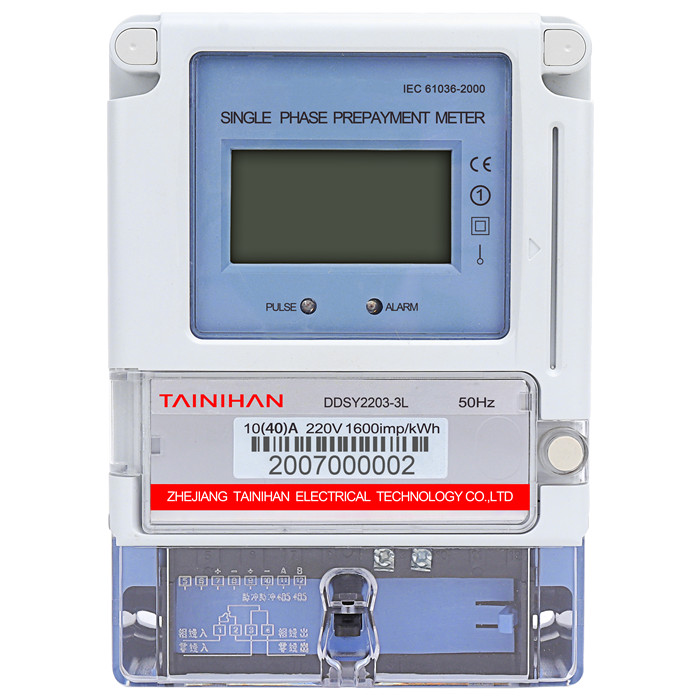

DDSY2203-3L Information
Zhejiang Tainihan Electrical Technology Co., Ltd DDSY-3L Series single phase electronic energy meter are adopt stable performance, low power consumption of industrial components, use the process carefully design and manufacture.This product can be installed either in indoor or outdoor meter box, and used under the temperature of -20℃--+55℃ and relative humidity below 85%. It is a new generation of product with full digital power metering, intelligent charge control, management of user’s information and other functions. This meter serves as the ideal product for the present reform of power use system, realizing power commercialization, solving the problem of difficult charge collection, and regulating the load of power network.
DDSY2203-3L Specifications
1 | Type | DDSY-3L |
2 | Display | LCD 6digist+2Dicmal |
3 | Accuracy | Class 1 |
4 | Rated Voltage (Un) | 220V Or 240V |
5 | Base Current (Ib) | 5A, 10A,15A or other |
6 | Max Current (Imax) | 20A, 40A, 60A or other |
7 | Frequency (Hz) | 50Hz Or 60Hz (±5%) |
8 | Starting Current (mA) | 0.4% Ib |
9 | Power Consumption of Current | ≤1W 10VA Per Phase |
10 | IP Class | IP51 |
11 | AC Voltage Withstand | 2KV for 1 Minute |
12 | Impulse Output Rate (Imp/kWh) | 1600, 800 Or Other |
13 | Operating Temperature | -20℃ To +55℃ |
14 | Storing Temperature | -40℃ To +70℃ |
15 | Operating Humidity | ≤75% |
16 | Storing Humidity | ≤95% |
17 | Communication | IC Card & IC Card Reader |
18 | LCD Display Backlight | Optional |
19 | Battery | Optional |
| | |
