DT862-4K Information

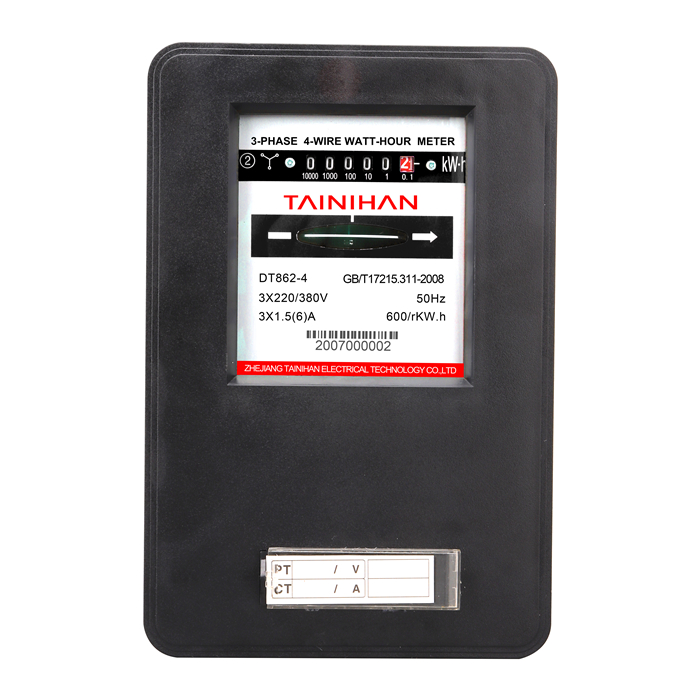

Zhejiang Tainihan electrical technology co., ltd DT862-4K Series Three phase mechanical energy meter use ABS raw material, can provide various functions: dual direction metering, reversion rotation rejecting, pulse output, carrier communication, etc. for customer’s needs.
DT862-4K Specifications
1 | Type | DT862-4K |
2 | Display | Register 5+1 |
3 | Accuracy | Class 2 |
4 | Rated Voltage (Un) | 3*220/380V Or 3*240/415V Or Other |
5 | Base Current (Ib) | 5A, 10A,15A or other |
6 | Max Current (Imax) | 20A, 40A, 60A or other |
7 | Frequency (Hz) | 50Hz Or 60Hz (±5%) |
8 | Starting Current (mA) | 1% Ib |
9 | Power Consumption of Current | ≤2W 10VA Per Phase |
10 | IP Class | IP51 |
11 | AC Voltage Withstand | 2KV for 1 Minute |
12 | Impulse Output Rate (Imp/kWh) | 1600, 800 Or Other |
13 | Operating Temperature | -20℃ To +55℃ |
14 | Storing Temperature | -40℃ To +70℃ |
15 | Operating Humidity | ≤75% |
16 | Storing Humidity | ≤95% |
17 | Communication | N/A |
18 | LCD Display Backlight | N/A |
19 | Battery | N/A |
