DDS-15L INFORMATION
Modular DIN Rail Products offer a wide range of functions to be integrated in electrical installations with significant benefits for the user. It is designed for high level performance and are safe and fast to install.
TAINIHAN” have a complete range of DIN-mounted electricity meters for different applications, the meters are quick and easy to install due to their DIN-rail mounting.
It is highly accurate, durable, reliable, lower power consumptive, Creep proof and strong overloading capability. It according to the related Chinese requirement of GB/T17215.321-2008 and International requirement IEC62053-21
DDS-15L SPECIFICATIONS
1 | Type | DDS-15L |
2 | Display | LCD 5+1 |
3 | Accuracy | Class 1 |
4 | Rated Voltage (Un) | 220V Or 240V Or Other |
5 | Base Current (Ib) | 5A, 10A,15A or other |
6 | Max Current (Imax) | 20A, 40A, 60A or other |
7 | Frequency (Hz) | 50Hz Or 60Hz (±5%) |
8 | Starting Current (mA) | 0.4% Ib |
9 | Power Consumption of Current | ≤1W 10VA Per Phase |
10 | IP Class | IP51 |
11 | AC Voltage Withstand | 2KV for 1 Minute |
12 | Impulse Output Rate (Imp/kWh) | 1600, 800 Or Other |
13 | Operating Temperature | -20℃ To +55℃ |
14 | Storing Temperature | -40℃ To +70℃ |
15 | Operating Humidity | ≤75% |
16 | Storing Humidity | ≤95% |
17 | Communication | N/A |
18 | LCD Display Backlight | Optional |
19 | Battery | N/A |
DDS-15L Function In Display And Monitoring
LCD Display 5digits+1Decimal,
Power led indicator,
Impulse led indicator

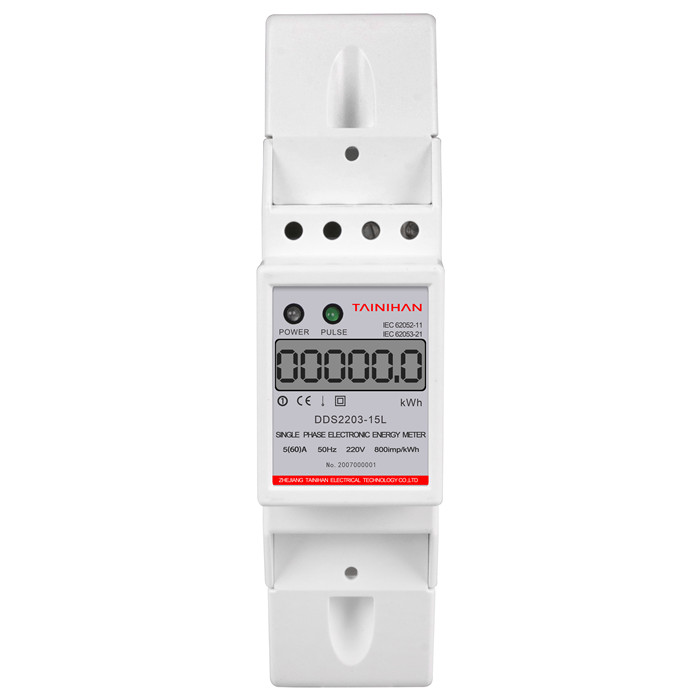

DDS-15L APPEARANCE

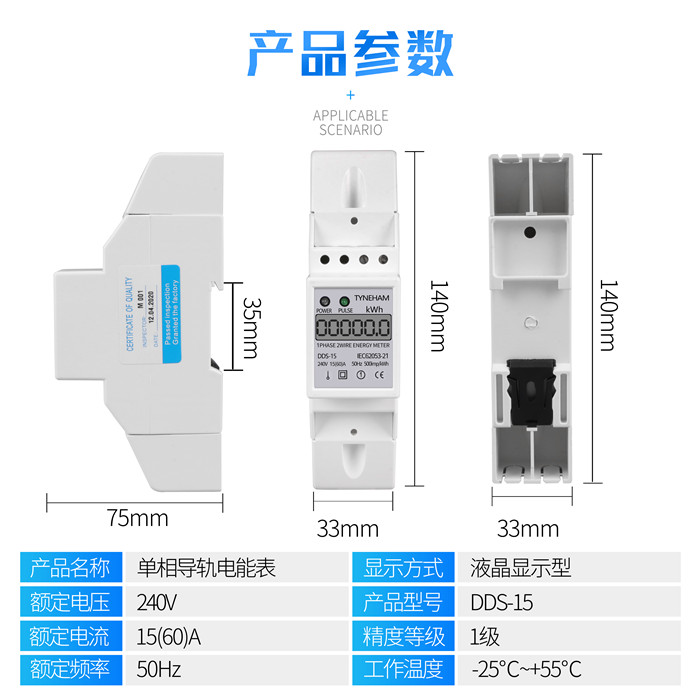

DDS-15L DIMENSIONS

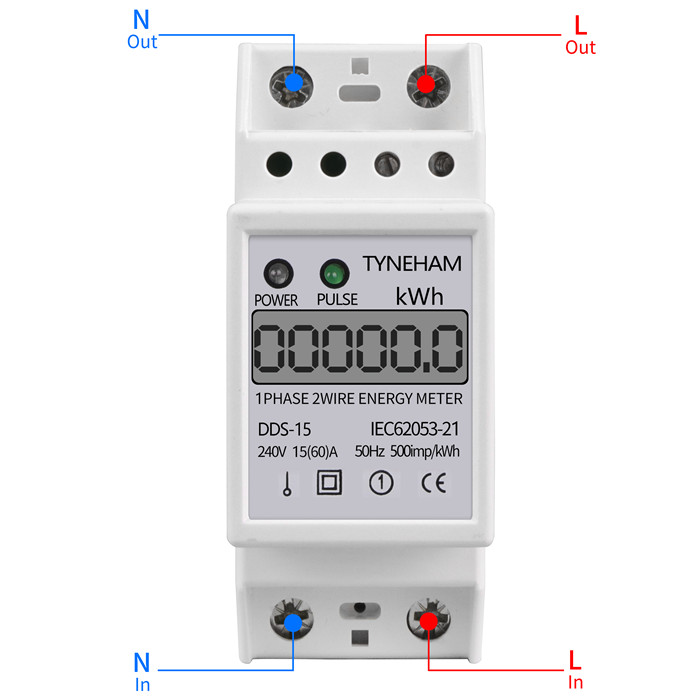

DDS-15L WIRING DIAGRAM
